How to Choose the Right Gantry Crane in 2026?

Choosing the right gantry crane in 2026 requires more than comparing prices and lifting capacities. The correct choice must match your site, workload, materials, and future production plans. A crane lifting steel coils in a fabrication yard faces different demands from one moving concrete panels indoors. Measure the span, lifting height, travel distance, floor condition, and available power before contacting suppliers. Then review the working load, duty class, lifting speed, and control method. Small details matter. A narrow aisle can limit wheel movement. Uneven ground can create dangerous loading conditions.

Reliable selection also depends on evidence, not confident promises. Ask manufacturers for load charts, inspection records, test certificates, maintenance guidance, and clear warranty terms. Confirm that the design follows applicable technical standards and local workplace requirements. An experienced engineer should check structural calculations, foundation conditions, wind exposure, and emergency stopping systems. Outdoor operations may need rail clamps, storm protection, and corrosion-resistant finishes. Indoor operations may prioritize low headroom, quiet travel, and precise positioning.

A lower quote may seem efficient. It may also omit essential safety features. That deserves attention. Buyers sometimes focus on maximum capacity and overlook repeated lifting cycles, operator visibility, or spare-parts support. These weaknesses often appear after installation, when changes become expensive. No checklist replaces practical judgment. Even experienced teams can miss an awkward column or an unexpected traffic route. This guide explains how to compare gantry crane types, evaluate suppliers, estimate ownership costs, and make a decision that remains dependable beyond the first lift.

Table of Contents [Hide]

1 Gantry Crane Basics: Types, Structures, and Common Applications

2 Define Your Lifting Requirements and Operating Conditions

3 Compare Capacity, Span, Height, Mobility, and Control Options

4 Evaluate Safety Systems, Standards, Maintenance, and Total Cost

5 Select the Crane Configuration That Fits Your 2026 Operations

Gantry Crane Basics: Types, Structures, and Common Applications

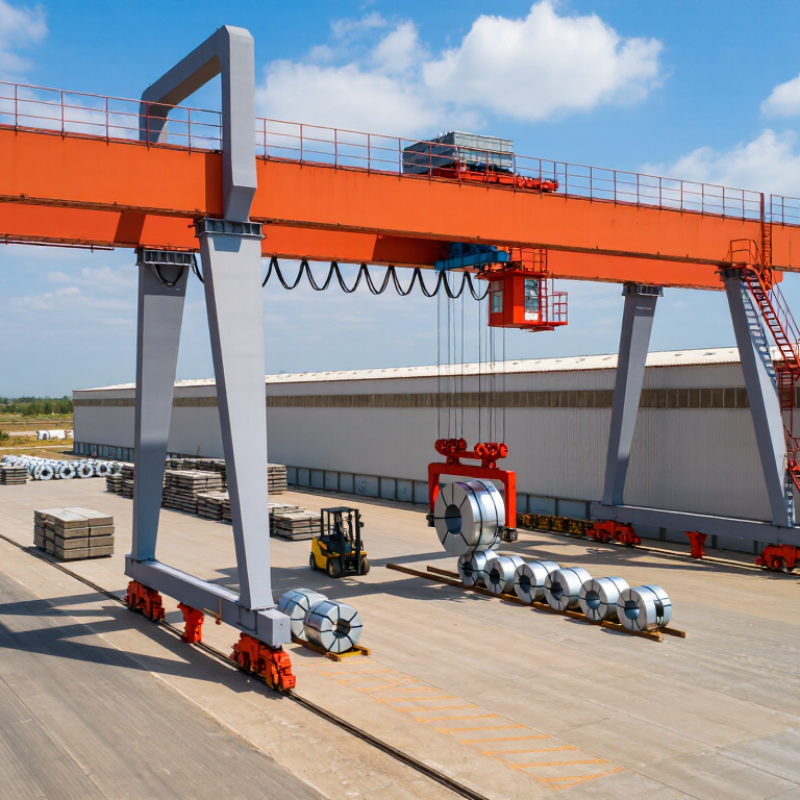

How to Choose the Right Gantry Crane in 2026?

Gantry cranes use legs, a horizontal girder, and powered wheels. The structure travels along floor rails or a prepared runway. Full gantries stand independently. Semi-gantries use one elevated runway and one floor rail. Portable gantries suit workshops, maintenance bays, and short lifting tasks. They are not universal solutions. A 2024 analysis by Grand View Research estimates the global crane market will expand steadily through 2030, driven by construction, manufacturing, and logistics demand. This growth makes correct classification more important.

Start with the load, span, lift height, and duty cycle. A steel plant may need a double-girder crane for heavy, repeated lifts. A warehouse may need a single-girder design for moderate loads and lower structural weight. Cantilever gantries extend beyond their legs. Useful outside buildings. Wind exposure changes the calculation. So does uneven ground. The ISO 8686 series provides load and design principles for cranes, while ASME B30.17 addresses gantry and overhead crane operation in North America.

Do not select capacity from the heaviest object alone. Add lifting devices, dynamic effects, and future loads. Check wheel loads, foundation strength, braking distance, and emergency access. The U.S. Bureau of Labor Statistics continues to report serious injuries from struck-by and caught-in incidents across industrial workplaces. Training and inspection remain practical controls. A neat specification can still be wrong. Site measurements often reveal the uncomfortable part.: runway alignment, headroom, or power supply may limit the design before tonnage does.

How to Choose the Right Gantry Crane in 2026?

Gantry Crane Basics: Types, Structures, and Common Applications

The chart shows indicative working-load ranges commonly associated with major gantry crane applications. Actual selection depends on rated capacity, span, lifting height, duty cycle, travel distance, site conditions, and applicable safety standards. Shipyard cranes require the highest capacities, while workshop and portable gantry cranes are generally used for lighter lifting tasks.

Define Your Lifting Requirements and Operating Conditions

Choosing the right gantry crane starts with the load, not the catalogue. Record maximum weight, load dimensions, lifting points, travel distance, and daily lifting cycles. Include slings, hooks, magnets, and other attachments in the calculation. A 10-ton load can create a higher design demand when it swings or accelerates.

Operating conditions matter just as much. Measure floor capacity, rail alignment, headroom, temperature, humidity, dust, and wind exposure. Outdoor cranes may require additional stability controls and wind limits. The International Labour Organization estimated 2.93 million work-related deaths globally in 2019, with many linked to unsafe working conditions. That figure is broad, but it should not be ignored.

Specify the required duty class and safe working load with a qualified engineer. The U.S. Bureau of Labor Statistics recorded 1,069 fatal work injuries in construction during 2022; this does not mean all involved cranes. Still, it reinforces careful planning. I have seen projects overfocus on lifting capacity and undercheck floor movement. That is an expensive mistake. A neat spreadsheet can still miss a wet surface, poor visibility, or an operator’s limited sightline. Define inspection access, emergency stopping, operator training, and maintenance intervals before ordering. Leave room for honest doubt. Real sites rarely behave perfectly.

How to Choose the Right Gantry Crane in 2026? - Define Your Lifting Requirements and Operating Conditions

Selection Dimension	Information to Define	Practical Planning Data	Recommended Selection Approach	Why It Matters
Rated Lifting Capacity	Maximum load to be lifted, including the heaviest routine load and foreseeable future loads.	1–5 tonnes: light-duty handling 5–20 tonnes: general industrial use 20–50 tonnes: heavy industrial handling Over 50 tonnes: engineered heavy-lift application	Select a rated capacity greater than the maximum lifted load. Include the weight of lifting attachments, spreader beams, slings, magnets, or other below-the-hook devices.	Overloading can cause structural failure, excessive wheel loads, motor overheating, and unsafe operation. Rated capacity must not be exceeded.
Load Distribution	Load center, lifting points, dimensions, center of gravity, and whether the load is rigid, flexible, liquid, or unbalanced.	Common load types include machinery, steel products, precast components, containers, molds, and fabricated assemblies.	Use suitable hooks, slings, lifting beams, clamps, magnets, or vacuum devices. Confirm the lifting accessory's working load limit separately.	The crane capacity alone does not guarantee safe lifting. Uneven loading can increase hook, trolley, beam, and wheel forces.
Span	Clear distance between runway or support legs, plus required working clearance.	Many workshop gantry cranes use spans of approximately 5–30 m; larger spans require project-specific structural verification.	Measure the actual travel path and account for columns, walls, equipment, stored materials, and maintenance access.	Increasing span generally increases girder weight, deflection, lateral forces, and required motor or wheel capacity.
Lifting Height	Required hook height, maximum load height, floor level, and overhead obstructions.	Typical workshop lifting heights range from approximately 3–12 m. The available hook height is lower than the overall crane height.	Calculate: required hook height + load height + sling or attachment height + safety clearance. Compare this with the building's clear height.	Insufficient headroom can prevent the crane from reaching the required position or force unsafe load handling.
Vertical Lift Speed	How quickly the load must be raised and lowered, and whether precise positioning is required.	Common hoist speeds are approximately 0.8–8 m/min; high-speed systems may require additional control and braking provisions.	Choose slower or variable-speed lifting for fragile, heavy, or precision-positioned loads. Use higher speeds only when the workflow and risk assessment support them.	Lift speed affects cycle time, load swing, stopping distance, positioning accuracy, and operator control.
Crane Travel Speed	Required movement speed along the runway or travel surface.	Typical industrial travel speeds are approximately 10–40 m/min, depending on load, travel distance, and control method.	Use variable-frequency drive control where smooth acceleration, deceleration, and accurate positioning are important.	Excessive travel speed can increase sway, impact forces, stopping distance, and collision risk.
Trolley Travel Speed	Required horizontal positioning speed across the span.	Typical trolley speeds are approximately 10–30 m/min for general industrial applications.	Match trolley speed to the load's sensitivity, operator visibility, production rhythm, and required positioning accuracy.	Trolley motion directly affects load swing and the time needed to place a load accurately.
Duty Classification	Number of operating hours, lifting cycles per hour, average load percentage, and daily or yearly usage.	Occasional: maintenance or infrequent handling Regular: several cycles per day Frequent: repeated production handling Continuous: intensive multi-shift service	Use a recognized crane duty classification method and calculate the expected load spectrum rather than selecting only by maximum capacity.	Duty affects hoist, motor, brake, gearbox, wheel, control panel, and structural fatigue requirements.
Operating Cycles	Expected lifts per hour, operating hours per shift, shifts per day, and working days per year.	Example planning cases: 5–15 lifts/hour for intermittent use; 20–40 lifts/hour for repetitive production handling.	Use measured production data where available. Include peak periods, seasonal demand, and future production expansion.	Cycle frequency determines heat generation, component wear, brake usage, and required maintenance intervals.
Indoor or Outdoor Use	Whether the crane operates inside a building, in a yard, under a canopy, or fully exposed to weather.	Indoor cranes generally face more stable conditions. Outdoor cranes may experience rain, snow, ultraviolet exposure, wind, dust, and temperature changes.	For outdoor operation, specify weather-resistant electrical equipment, drainage, corrosion protection, travel limits, wheel brakes, and wind restraints.	Outdoor conditions can affect structural stability, electrical reliability, corrosion rate, braking, and unauthorized movement.
Wind Conditions	Basic wind speed, operating wind limit, non-operating wind speed, exposure, and local site conditions.	Wind limits must be established from the site design data and applicable local standards. Outdoor cranes may require anemometers and storm anchoring.	Obtain wind data for the exact site. Provide rail clamps, storm brakes, wheel chocks, or anchoring systems where required by the design.	Wind can move an unloaded crane, destabilize a loaded crane, increase side loads, and damage structures or stored loads.
Floor and Ground Conditions	Rail alignment, floor strength, slab condition, runway support, drainage, and surface flatness.	Temporary or portable gantries may use casters on finished floors. Rail-mounted systems require verified rail supports and alignment.	Check wheel loads, axle loads, slab capacity, rail tolerances, floor joints, ramps, and obstructions before finalizing the design.	Weak or uneven support can cause wheel overload, skewing, derailment, excessive vibration, or structural damage.
Fixed, Rail-Mounted, or Portable	Required mobility, installation duration, work area changes, and whether the crane must pass through doors or around equipment.	Fixed: stable dedicated work zone Rail-mounted: long travel path and frequent production use Portable: occasional or flexible handling	Choose a fixed or rail-mounted system for repeatable production. Choose a portable system only when its floor, wheel, and stability limits are suitable.	Mobility changes the load path, stability requirements, installation method, and operating restrictions.
Headroom and Overall Height	Building clear height, roof structure, door height, sprinkler systems, lights, ductwork, and overhead utilities.	Low-headroom designs may reduce lifting height but can increase trolley or hoist complexity.	Record the lowest obstruction along the complete travel route. Maintain the clearances required by applicable regulations and the crane designer.	Headroom conflicts can limit travel, cause collisions, and reduce the usable lifting height.
Electrical Supply	Voltage, frequency, phase, available short-circuit current, grounding, cable route, and power quality.	Industrial systems commonly use three-phase AC power. Exact voltage and frequency must match the site electrical system.	Confirm the available supply with a qualified electrical professional. Specify disconnects, overload protection, grounding, and emergency isolation.	Incorrect electrical specifications can cause motor damage, nuisance trips, unsafe touch voltage, or inadequate braking and control.
Control Method	Control pendant, radio remote, cabin, automated control, visibility, and operator location.	Pendant controls suit close-range operation; radio controls improve operator mobility; automated systems require additional safeguards.	Select a control method that maintains clear visibility of the load and travel path. Provide emergency-stop functions and protected control circuits.	Control layout affects visibility, response time, operator fatigue, and the ability to stop safely.
Load Sway and Positioning Accuracy	Required placement accuracy, load flexibility, travel distance, and sensitivity of nearby equipment.	Basic systems may rely on operator control. Higher accuracy may require variable-speed drives, soft starts, limit controls, or anti-sway functions.	Specify the maximum acceptable positioning deviation and allowable swing before choosing advanced controls.	Reducing sway improves productivity, protects loads, and lowers the chance of striking people, structures, or equipment.
Hazardous or Special Environment	Dust, moisture, corrosive chemicals, explosive atmospheres, high temperatures, cold storage, or food-processing conditions.	Corrosive, dusty, wet, or explosive environments require equipment and electrical protection suitable for the specific hazard classification.	Document the environment before selecting motors, enclosures, brakes, coatings, seals, heaters, or temperature-rated components.	Standard equipment may fail prematurely or create unacceptable ignition, shock, corrosion, or contamination risks.
Temperature Range	Minimum and maximum ambient temperature, rapid temperature changes, and heat from the load or process.	Many standard systems are designed for moderate industrial temperatures, while cold or hot environments may require special materials and components.	Provide the actual site temperature range to the crane designer and specify cold-start, insulation, lubrication, or cooling requirements where necessary.	Temperature affects lubricants, seals, batteries, cables, brakes, structural toughness, and motor performance.
Safety Features	Required safeguards for people, buildings, adjacent cranes, travel limits, and suspended loads.	Common features include overload protection, upper and lower hoist limits, emergency stop, travel limits, warning devices, buffers, and anti-collision controls.	Base the safety package on the risk assessment, local regulations, site traffic, crane layout, and operating procedures.	Safety devices help prevent overloads, overtravel, collisions, uncontrolled motion, and unauthorized operation.
Maintenance Access	Access to hoist, motors, brakes, electrical panels, wheels, rails, limit switches, and lubrication points.	Maintenance areas should allow inspection, adjustment, replacement, and testing without exposing personnel to unnecessary hazards.	Plan service platforms, ladders, lockout points, inspection clearance, spare parts, and safe access routes during the design stage.	Good maintainability reduces downtime, improves inspection quality, and lowers the risk of deferred repairs.
Installation and Site Logistics	Delivery route, assembly area, lifting equipment, floor loading during installation, permits, and shutdown time.	Large gantry components may require staged assembly and temporary lifting equipment. Portable systems may reduce installation time but still require stability checks.	Confirm transport dimensions, component weights, access openings, assembly sequence, and commissioning requirements before ordering.	A crane that cannot be safely delivered or assembled may cause major project delays and additional costs.
Compliance and Documentation	Applicable national regulations, design standards, inspection rules, electrical codes, and site safety procedures.	Requirements vary by jurisdiction and application. Documentation commonly includes load charts, drawings, calculations, manuals, inspection records, and test certificates.	Identify the governing requirements before design approval and request complete technical documentation for installation and operation.	Compliance supports legal operation, safe commissioning, operator training, inspections, and future maintenance.
Future Capacity and Expansion	Expected changes in load weight, production volume, building layout, and additional lifting points.	A moderate reserve may be useful, but the crane should not be oversized without checking structural, electrical, and economic consequences.	Define realistic future requirements separately from current needs and verify that the building, floor, runway, and power supply can support expansion.	Planning ahead can avoid premature replacement, while excessive capacity increases purchase price, wheel loads, and infrastructure requirements.
Total Cost of Ownership	Purchase price, installation, energy use, inspections, maintenance, spare parts, downtime, and eventual replacement.	Higher-duty equipment may cost more initially but can be more suitable for frequent production cycles and demanding environments.	Compare lifecycle cost and availability rather than selecting solely by initial purchase price.	The lowest initial price may result in higher downtime, shorter component life, and greater operating risk.

Planning ranges are general industry reference values, not final design limits. Final crane selection should be verified by a qualified engineer against the actual load spectrum, site conditions, applicable regulations, and the manufacturer's technical documentation.

Compare Capacity, Span, Height, Mobility, and Control Options

How to Choose the Right Gantry Crane in 2026?

Choosing a gantry crane starts with the real load, not the heaviest load imaginable. Record the weight of motors, molds, pallets, and lifting accessories. Add a safety margin confirmed by a qualified engineer. Capacity is only one part. A 10-ton crane may become unsuitable when the load swings or moves near its limit. Keep the load centered.

Span controls coverage across the work area. Measure the rail distance, aisle width, and nearby equipment. A wider span can improve access, but it may increase structural stress and deflection. Height matters just as much. Check hook height under the lowest beam, then allow room for slings and packaging. Measure twice. I once saw a design fail on paper because the operator forgot a raised pallet.

Mobility depends on the floor and working pattern. Rubber wheels suit occasional movement, while fixed rails offer steadier travel for repeated lifts. Confirm floor strength, turning space, and wheel clearance before selecting mobile equipment. Control options also affect safety and productivity. Pendant controls are simple, while remote controls improve visibility around large loads. Variable-speed travel can reduce sudden movement. It needs proper training. Test emergency stops, limit devices, alarms, and braking during commissioning. Keep inspection records, even when the crane appears lightly used. Small omissions become expensive lessons.

Evaluate Safety Systems, Standards, Maintenance, and Total Cost

How to Choose the Right Gantry Crane in 2026?

Safety should lead the evaluation, not the purchase price. OSHA’s 2022 construction fatality profile shows that the “Fatal Four” caused roughly two-thirds of worker deaths. A gantry crane needs tested overload protection, upper and lower limit switches, emergency stops, and visible load indicators. Anti-collision sensors matter in crowded workshops. They are not decorative upgrades.

Check compliance with applicable requirements, including OSHA 1910.179 and ASME B30.17, then verify local rules. The BLS Census of Fatal Occupational Injuries recorded 5,283 fatal work injuries across the United States in 2023. That figure is broad, but it keeps risk in perspective. A competent inspection plan should define daily checks, periodic examinations, rope discard criteria, and documented repairs. ISO 4309 provides practical guidance for wire-rope inspection. Small defects become expensive.

Maintenance also changes total cost. Compare inspection access, spare-part availability, operator training, energy use, installation, and expected downtime. A cheaper crane may require more manual checking. That is not always a saving. Ask for duty classification, brake-life estimates, and service records, not only a rated capacity. The right capacity can still be wrong for frequent starts, outdoor exposure, or uneven floors. I would leave a contingency budget for unexpected wear. Forecasts are useful, but workshops rarely behave perfectly.

Select the Crane Configuration That Fits Your 2026 Operations

Selecting the right gantry crane in 2026 starts with your daily operating pattern. A 20-ton crane may suit a fabrication yard, but it can be excessive for occasional maintenance work. Record the heaviest load, lifting frequency, span, and required hook height. Measure twice.

Choose a single-girder configuration when loads are moderate and headroom matters. Its lighter structure can reduce runway and foundation demands. A double-girder design offers greater lifting height and better stability for heavy, frequent cycles. However, it may increase wheel loads, installation effort, and inspection needs. Outdoor operations require more than weather-resistant paint. Check wind exposure, drainage, electrical protection, and travel-surface conditions. Uneven ground can affect wheel alignment and create dangerous loading patterns.

Controls should match the operator’s real working environment. Pendant controls may work in a compact bay, while remote controls improve visibility around long loads. Variable-speed travel can reduce swinging, but operators still need practical training. I have seen projects focus on rated capacity while ignoring aisle clearance and maintenance access. That mistake becomes expensive later. Leave room for trolley service, hook replacement, and safe pedestrian separation. Confirm duty classification, emergency stops, overload protection, and inspection access against applicable safety requirements. A configuration that looks efficient on paper may perform poorly when loads change, temperatures fall, or production expands. Build in some capacity, but avoid buying unused strength without checking the supporting structure.
